Multiobjective Optimisation with Weights

There are a few different ways we can handle multiple competing objectives that we need to balance.

In lokigi, by default, we will weight a p-median problem on demand.

Let’s imagine we have two regions, A and B.

We are trying out a combination of 3 sites.

Region A has an expected demand of 100 people per month. In this solution, we see that the journey time to their nearest centre is 10 minutes.

Region B has an expected demand of 500 people per month. In this solution, the journey time to their nearest centre is 40 minutes.

Now we look at another solution. For region A, the time is now 20 minutes. For region B, the time is now 15 minutes.

While this is worse for the people in region A, more people in region B will benefit, bringing the average travel time across all people down.

This can lead to a better solution overall than assuming demand is equal across a region.

But what happens if demand isn’t the only thing we care about?

What if we want to put more importance on improving access in the most deprived areas, for example?

Using additional weights can help us to do this.

Note

While lokigi offers weights as an option for multi-objective problems, weights have a few drawbacks:

  • they can be quite opaque and challenging to understand for stakeholders
  • they can have limited effect on the outcome

Therefore you may wish to consider alternative approaches to multiobjective optimisation, such as those shown in the sections comparing two solutions and pareto optimisation.

from lokigi.site import SiteProblem

problem = SiteProblem()

problem.add_sites(
    "../../../sample_data/devon_cdcs.csv",
    candidate_id_col="Facility_Name",
    vertical_geometry_col="Latitude",
    horizontal_geometry_col="Longitude",
    required_sites_col="Existing"
    )

problem.add_region_geometry_layer(
    "../../../sample_data/LSOA_Devon_2021_EW_BSC_V4.gpkg",
    common_col="LSOA21NM"
    )

problem.add_travel_matrix(
    travel_matrix_df="../../../sample_data/travel_matrix_car_devon_cdcs.csv",
    source_col="from_id",
    unit="minutes",
    )

problem.add_demand(
    "../../../sample_data/demand_MF_50_84.csv",
    demand_col="Total",
    location_id_col="LSOA 2021 Name"
    )

problem.add_equity_data(
    "../../../sample_data/devon_imd_2025_2021_LSOAs.csv",
    equity_col="Index of Multiple Deprivation (IMD) Decile (where 1 is most deprived 10% of LSOA",
    common_col="LSOA name (2021)",
    label="IMD Decile (1 = most deprived)"
    )
Guessed CRS: EPSG:4326 (Values fall within longitude/latitude bounds)

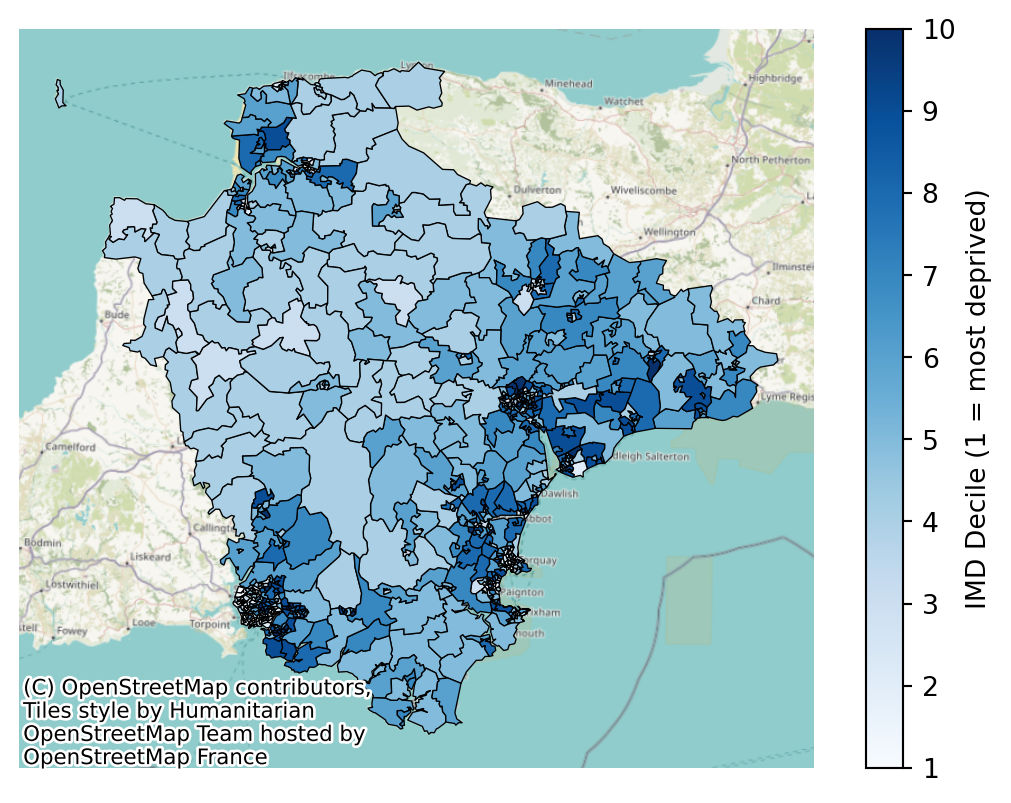

problem.plot_region_geometry_layer(plot_equity=True)

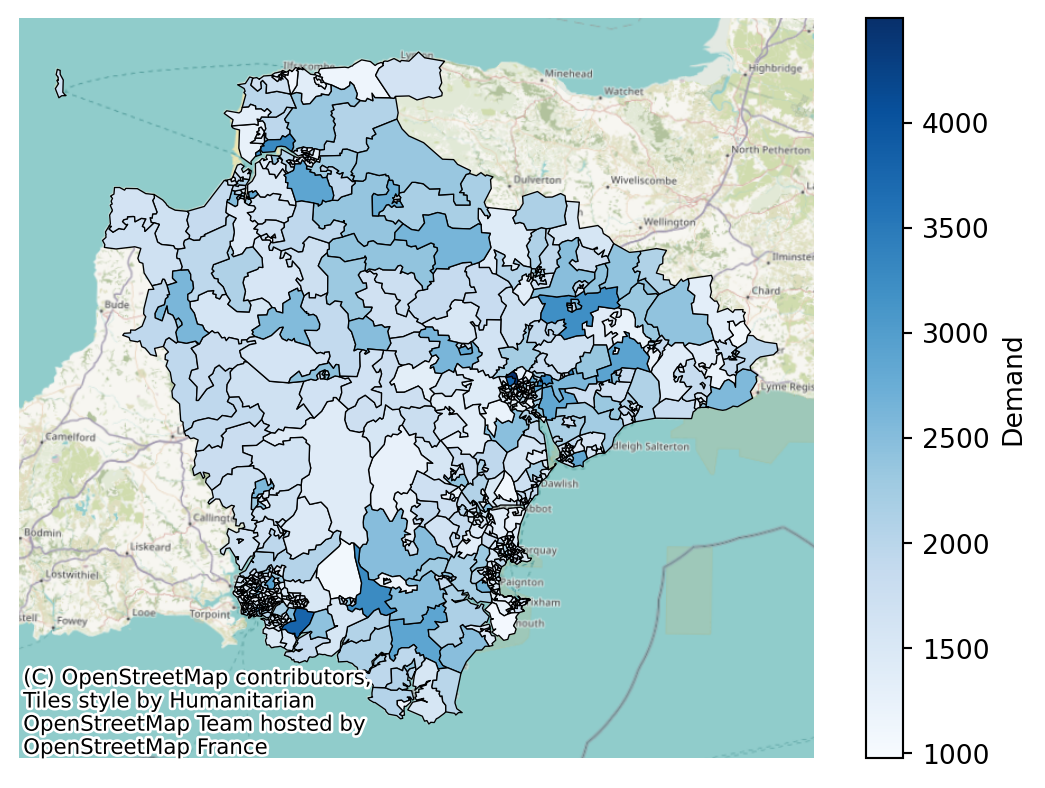

problem.plot_region_geometry_layer(plot_demand=True)

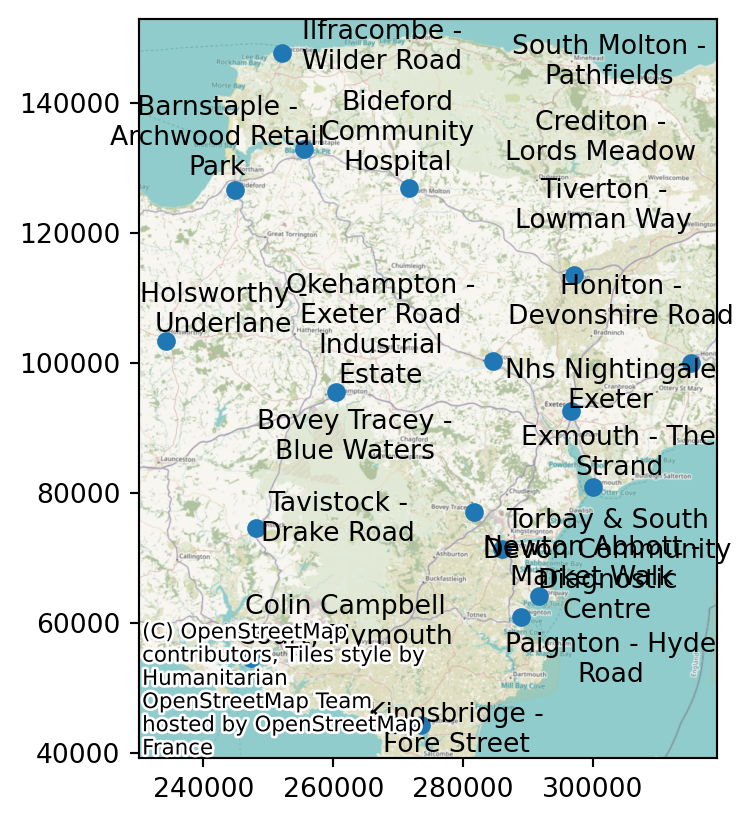

problem.plot_sites()

Weighting by demand, equity, or both

The default behaviour in lokigi, if no weights are stated for a standard (unsimplified) p-median problem

As a reminder, an unsimplified p-median problem will solve for raw travel times rather than applying any weighting.

solution_standard_demand_weighted_p_median = problem.solve(p=5, objectives="p_median", threshold_for_coverage=30)
solution_standard_demand_weighted_p_median.show_solutions(n_best=3)
solution_rank site_names site_indices unselected_site_names coverage_threshold weighted_average unweighted_average 90th_percentile max weighted_average_for_ranking ... gap_relative_weighted avg_lower_third_bins avg_middle_third_bins avg_upper_third_bins inter_tertile_ratio gap_absolute_description gap_relative_description inter_tertile_description problem_df additional_site_names
0 1 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 12] [Tiverton - Lowman Way, Okehampton - Exeter Ro... 30 20.23 20.03 39.41 61.53 20.23 ... 2.65 15.86 23.18 17.60 0.90 Spread of 16.2 minutes between best and worst ... Significant Disparity (Worst group travels 165... Slightly Progressive (Most deprived travel 10%... LSOA 2021 Name  Bideford Community Hospi... [Barnstaple - Archwood Retail Park]
1 2 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 5] [Tiverton - Lowman Way, Crediton - Lords Meado... 30 20.43 20.37 37.61 61.53 20.43 ... 2.18 16.40 23.46 18.08 0.91 Spread of 13.6 minutes between best and worst ... Significant Disparity (Worst group travels 118... Slightly Progressive (Most deprived travel 9% ... LSOA 2021 Name  Bideford Community Hospi... [Okehampton - Exeter Road Industrial Estate]
2 3 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 8] [Tiverton - Lowman Way, Okehampton - Exeter Ro... 30 20.44 20.21 42.07 61.18 20.44 ... 2.23 16.86 23.17 17.04 0.99 Spread of 14.2 minutes between best and worst ... Significant Disparity (Worst group travels 123... Balanced (Macro travel times are broadly equal) LSOA 2021 Name  Bideford Community Hospi... [Newton Abbott - Market Walk]

3 rows × 38 columns

solution_standard_demand_weighted_p_median.show_solutions().sort_values('inter_tertile_ratio').head(3)
solution_rank site_names site_indices unselected_site_names coverage_threshold weighted_average unweighted_average 90th_percentile max weighted_average_for_ranking ... gap_relative_weighted avg_lower_third_bins avg_middle_third_bins avg_upper_third_bins inter_tertile_ratio gap_absolute_description gap_relative_description inter_tertile_description problem_df additional_site_names
0 1 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 12] [Tiverton - Lowman Way, Okehampton - Exeter Ro... 30 20.23 20.03 39.41 61.53 20.23 ... 2.65 15.86 23.18 17.60 0.90 Spread of 16.2 minutes between best and worst ... Significant Disparity (Worst group travels 165... Slightly Progressive (Most deprived travel 10%... LSOA 2021 Name  Bideford Community Hospi... [Barnstaple - Archwood Retail Park]
1 2 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 5] [Tiverton - Lowman Way, Crediton - Lords Meado... 30 20.43 20.37 37.61 61.53 20.43 ... 2.18 16.40 23.46 18.08 0.91 Spread of 13.6 minutes between best and worst ... Significant Disparity (Worst group travels 118... Slightly Progressive (Most deprived travel 9% ... LSOA 2021 Name  Bideford Community Hospi... [Okehampton - Exeter Road Industrial Estate]
12 13 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 16] [Tiverton - Lowman Way, Okehampton - Exeter Ro... 30 20.94 20.84 39.84 61.53 20.94 ... 2.34 16.42 24.40 18.12 0.91 Spread of 15.4 minutes between best and worst ... Significant Disparity (Worst group travels 134... Slightly Progressive (Most deprived travel 9% ... LSOA 2021 Name  Bideford Community Hospi... [Holsworthy - Underlane]

3 rows × 38 columns

solution_standard_demand_weighted_p_median.show_solutions().sort_values('inter_tertile_ratio', ascending=False).head(3)
solution_rank site_names site_indices unselected_site_names coverage_threshold weighted_average unweighted_average 90th_percentile max weighted_average_for_ranking ... gap_relative_weighted avg_lower_third_bins avg_middle_third_bins avg_upper_third_bins inter_tertile_ratio gap_absolute_description gap_relative_description inter_tertile_description problem_df additional_site_names
8 9 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 10] [Tiverton - Lowman Way, Okehampton - Exeter Ro... 30 20.72 20.51 39.44 61.53 20.72 ... 2.26 17.35 23.21 17.23 1.01 Spread of 14.6 minutes between best and worst ... Significant Disparity (Worst group travels 126... Balanced (Macro travel times are broadly equal) LSOA 2021 Name  Bideford Community Hospi... [Honiton - Devonshire Road]
13 14 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 11] [Tiverton - Lowman Way, Okehampton - Exeter Ro... 30 21.03 20.85 42.40 61.53 21.03 ... 2.33 17.15 24.11 17.17 1.00 Spread of 15.3 minutes between best and worst ... Significant Disparity (Worst group travels 133... Balanced (Macro travel times are broadly equal) LSOA 2021 Name  Bideford Community Hospi... [Exmouth - The Strand]
2 3 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 8] [Tiverton - Lowman Way, Okehampton - Exeter Ro... 30 20.44 20.21 42.07 61.18 20.44 ... 2.23 16.86 23.17 17.04 0.99 Spread of 14.2 minutes between best and worst ... Significant Disparity (Worst group travels 123... Balanced (Macro travel times are broadly equal) LSOA 2021 Name  Bideford Community Hospi... [Newton Abbott - Market Walk]

3 rows × 38 columns

Weighting by equity instead

We can instead weight by equity by passing in a dictionary of weights.

solution_equity_weighted_p_median = problem.solve(p=5, objectives="p_median", weights={'equity': 1.0}, threshold_for_coverage=30)
solution_equity_weighted_p_median.show_solutions(n_best=3)
solution_rank site_names site_indices unselected_site_names coverage_threshold weighted_average unweighted_average 90th_percentile max weighted_average_for_ranking ... gap_relative_weighted avg_lower_third_bins avg_middle_third_bins avg_upper_third_bins inter_tertile_ratio gap_absolute_description gap_relative_description inter_tertile_description problem_df additional_site_names
0 1 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 12] [Tiverton - Lowman Way, Okehampton - Exeter Ro... 30 19.57 20.03 39.41 61.53 19.57 ... 2.49 15.90 22.81 17.81 0.89 Spread of 15.3 minutes between best and worst ... Significant Disparity (Worst group travels 149... Slightly Progressive (Most deprived travel 11%... LSOA 2021 Name  Bideford Community Hospi... [Barnstaple - Archwood Retail Park]
1 2 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 5] [Tiverton - Lowman Way, Crediton - Lords Meado... 30 19.91 20.37 37.61 61.53 19.91 ... 2.05 16.65 23.19 18.33 0.91 Spread of 12.8 minutes between best and worst ... Significant Disparity (Worst group travels 105... Slightly Progressive (Most deprived travel 9% ... LSOA 2021 Name  Bideford Community Hospi... [Okehampton - Exeter Road Industrial Estate]
2 3 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 17] [Tiverton - Lowman Way, Okehampton - Exeter Ro... 30 19.99 20.37 41.91 61.18 19.99 ... 2.28 16.61 22.80 18.00 0.92 Spread of 14.2 minutes between best and worst ... Significant Disparity (Worst group travels 128... Slightly Progressive (Most deprived travel 8% ... LSOA 2021 Name  Bideford Community Hospi... [Paignton - Hyde Road]

3 rows × 38 columns

Weighting by both demand and equity

solution_equity_and_demand_weighted_p_median = problem.solve(
    p=5, objectives="p_median", weights={'equity': 1.0, 'demand': 1.0}, threshold_for_coverage=30,
    )
solution_equity_and_demand_weighted_p_median.show_solutions(n_best=3)
solution_rank site_names site_indices unselected_site_names coverage_threshold weighted_average unweighted_average 90th_percentile max weighted_average_for_ranking ... gap_relative_weighted avg_lower_third_bins avg_middle_third_bins avg_upper_third_bins inter_tertile_ratio gap_absolute_description gap_relative_description inter_tertile_description problem_df additional_site_names
0 1 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 12] [Tiverton - Lowman Way, Okehampton - Exeter Ro... 30 19.84 20.03 39.41 61.53 19.84 ... 2.56 15.90 23.08 17.46 0.91 Spread of 15.8 minutes between best and worst ... Significant Disparity (Worst group travels 156... Slightly Progressive (Most deprived travel 9% ... LSOA 2021 Name  Bideford Community Hospi... [Barnstaple - Archwood Retail Park]
1 2 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 5] [Tiverton - Lowman Way, Crediton - Lords Meado... 30 20.08 20.37 37.61 61.53 20.08 ... 2.11 16.55 23.40 17.94 0.92 Spread of 13.2 minutes between best and worst ... Significant Disparity (Worst group travels 111... Slightly Progressive (Most deprived travel 8% ... LSOA 2021 Name  Bideford Community Hospi... [Okehampton - Exeter Road Industrial Estate]
2 3 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 4] [Okehampton - Exeter Road Industrial Estate, C... 30 20.17 20.39 41.07 61.53 20.17 ... 2.21 16.47 23.35 17.61 0.94 Spread of 14.3 minutes between best and worst ... Significant Disparity (Worst group travels 121... Slightly Progressive (Most deprived travel 6% ... LSOA 2021 Name  Bideford Community Hospi... [Tiverton - Lowman Way]

3 rows × 38 columns

Additional datasets

Let’s now add an additional dataset. We’re going to add in demand for patients 50-84.

problem.add_additional_data(
    df="../../../sample_data/demand_MF_50_84.csv",
    column_of_interest="MF50-84",
    common_col="LSOA 2021 Name",
    label="Demand 50-84",
    direction="higher_better"
    )
solution_additional_dataset_weighted_p_median = problem.solve(
    p=5, objectives="p_median", weights={'equity': 0.1, 'demand': 0.1, 'Demand 50-84': 0.6}, threshold_for_coverage=30
    )
solution_equity_and_demand_weighted_p_median.show_solutions(n_best=3)
solution_rank site_names site_indices unselected_site_names coverage_threshold weighted_average unweighted_average 90th_percentile max weighted_average_for_ranking ... gap_relative_weighted avg_lower_third_bins avg_middle_third_bins avg_upper_third_bins inter_tertile_ratio gap_absolute_description gap_relative_description inter_tertile_description problem_df additional_site_names
0 1 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 12] [Tiverton - Lowman Way, Okehampton - Exeter Ro... 30 19.84 20.03 39.41 61.53 19.84 ... 2.56 15.90 23.08 17.46 0.91 Spread of 15.8 minutes between best and worst ... Significant Disparity (Worst group travels 156... Slightly Progressive (Most deprived travel 9% ... LSOA 2021 Name  Bideford Community Hospi... [Barnstaple - Archwood Retail Park]
1 2 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 5] [Tiverton - Lowman Way, Crediton - Lords Meado... 30 20.08 20.37 37.61 61.53 20.08 ... 2.11 16.55 23.40 17.94 0.92 Spread of 13.2 minutes between best and worst ... Significant Disparity (Worst group travels 111... Slightly Progressive (Most deprived travel 8% ... LSOA 2021 Name  Bideford Community Hospi... [Okehampton - Exeter Road Industrial Estate]
2 3 [Bideford Community Hospital, NHS Nightingale ... [0, 1, 2, 3, 4] [Okehampton - Exeter Road Industrial Estate, C... 30 20.17 20.39 41.07 61.53 20.17 ... 2.21 16.47 23.35 17.61 0.94 Spread of 14.3 minutes between best and worst ... Significant Disparity (Worst group travels 121... Slightly Progressive (Most deprived travel 6% ... LSOA 2021 Name  Bideford Community Hospi... [Tiverton - Lowman Way]

3 rows × 38 columns

solution_additional_dataset_weighted_p_median.show_solutions().iloc[0]['problem_df']
LSOA 2021 Name Bideford Community Hospital NHS Nightingale Exeter Colin Campbell Court, Plymouth Torbay & South Devon Community Diagnostic Centre Barnstaple - Archwood Retail Park min_cost selected_site within_threshold Total Demand 50-84 LSOA name (2021) Index of Multiple Deprivation (IMD) Decile (where 1 is most deprived 10% of LSOA
0 Plymouth 001A 103.350000 71.266670 15.883333 72.750000 109.933334 15.883333 Colin Campbell Court, Plymouth True 1712 850 Plymouth 001A 10
1 Plymouth 002A 105.633330 71.416664 16.033333 72.916664 112.216670 16.033333 Colin Campbell Court, Plymouth True 1669 698 Plymouth 002A 8
2 Plymouth 003A 108.600000 72.000000 15.500000 73.500000 115.183334 15.500000 Colin Campbell Court, Plymouth True 1750 630 Plymouth 003A 2
3 Plymouth 003B 110.533330 73.900000 17.433332 75.383330 117.116670 17.433332 Colin Campbell Court, Plymouth True 1493 498 Plymouth 003B 2
4 Plymouth 003C 112.100000 75.416664 19.000000 76.916664 118.683334 19.000000 Colin Campbell Court, Plymouth True 1740 444 Plymouth 003C 1
... ... ... ... ... ... ... ... ... ... ... ... ... ...
724 Torbay 013I 115.350000 46.650000 58.516666 20.066668 118.750000 20.066668 Torbay & South Devon Community Diagnostic Centre True 2670 576 Torbay 013I 5
725 Torridge 002D 9.083333 92.700000 123.016670 117.866670 19.966667 9.083333 Bideford Community Hospital True 1090 628 Torridge 002D 4
726 Torridge 002E 9.700000 93.850000 124.166664 119.016670 21.116667 9.700000 Bideford Community Hospital True 1561 759 Torridge 002E 5
727 West Devon 001E 51.783333 65.883330 83.883330 91.716670 58.416668 51.783333 Bideford Community Hospital False 1609 797 West Devon 001E 4
728 West Devon 001F 54.666668 45.550000 73.766670 71.400000 58.083332 45.550000 NHS Nightingale Exeter False 2438 661 West Devon 001F 5

729 rows × 13 columns
