Minimizing the average travel time to sites

First, we need to import and initialise the SiteProblem class.

from lokigi.site import SiteProblem
import pandas as pd

problem = SiteProblem()

Let’s see what models are currently supported.

problem.describe_models(available_only=True)

=== Supported Healthcare Location Models ===

ID: simple_p_median
Name: P-Median (Average Distance Minimizer)
Goal: Minimize the total travel distance or time.
When to use: Best for situations like siting a series of storage hubs efficiently across a region where demand/volume doesn't matter.
Main Trade-off: Can leave remote or rural patients with very long travel times in favor of urban density.

ID: p_median
Name: P-Median (Average Weighted Distance Minimizer)
Goal: Minimize the total travel distance or time for the entire population, weighting the travel times by a metric such as demand per region.
When to use: Best for general primary care where you want the 'average' patient to have the shortest trip possible.
Main Trade-off: Can leave remote or rural patients with very long travel times in favor of urban density.

ID: hybrid_simple_p_median
Name: Hybrid Simple P-Median (The Safety Net Model)
Goal: Minimize the total travel distance or time, weighting the travel times by a metric such as demand per region, while guaranteeing a maximum 'cutoff' time for every patient.
When to use: Makes the system efficient while preventing major 'postcode lotteries' where some patients travel a very long way.
Main Trade-off: Hard cut-off point could see some good solutions that nearly meet the cutoff being discarded.

ID: hybrid_p_median
Name: Hybrid P-Median (The Safety Net Model)
Goal: Minimize average travel distance or time while guaranteeing a maximum 'cutoff' time for every patient.
When to use: Makes the system efficient while preventing major 'postcode lotteries' where some patients travel a very long way.
Main Trade-off: Hard cut-off point could see some good solutions that nearly meet the cutoff being discarded.

ID: p_center
Name: P-Center (The Fair-Maximum Model)
Goal: Minimize the maximum travel distance or time for the furthest patient.
When to use: Best for ensuring universal access in rural regions; 'No one left behind'.
Main Trade-off: Can lead to higher average travel distances or times for the majority population.

ID: mclp
Name: Maximal Coverage Location Problem (MCLP)
Goal: Maximize the number of people within a specific time/distance 'threshold' (e.g., 15 minutes).
When to use: Best for emergency services (Ambulance/ER) where getting there within a 'Golden Hour' is more important than the average trip time.
Main Trade-off: Does not care how far away people are once they are outside the threshold.

To run a model, use: prob.solve_pmedian(p=3) or similar.

And what models will be supported in the future?

problem.describe_models(available_only=False)

=== Healthcare Location Models ===

ID: simple_p_median
Name: P-Median (Average Distance Minimizer)
Goal: Minimize the total travel distance or time.
When to use: Best for situations like siting a series of storage hubs efficiently across a region where demand/volume doesn't matter.
Main Trade-off: Can leave remote or rural patients with very long travel times in favor of urban density.
Status: Supported

ID: p_median
Name: P-Median (Average Weighted Distance Minimizer)
Goal: Minimize the total travel distance or time for the entire population, weighting the travel times by a metric such as demand per region.
When to use: Best for general primary care where you want the 'average' patient to have the shortest trip possible.
Main Trade-off: Can leave remote or rural patients with very long travel times in favor of urban density.
Status: Supported

ID: hybrid_simple_p_median
Name: Hybrid Simple P-Median (The Safety Net Model)
Goal: Minimize the total travel distance or time, weighting the travel times by a metric such as demand per region, while guaranteeing a maximum 'cutoff' time for every patient.
When to use: Makes the system efficient while preventing major 'postcode lotteries' where some patients travel a very long way.
Main Trade-off: Hard cut-off point could see some good solutions that nearly meet the cutoff being discarded.
Status: Supported

ID: hybrid_p_median
Name: Hybrid P-Median (The Safety Net Model)
Goal: Minimize average travel distance or time while guaranteeing a maximum 'cutoff' time for every patient.
When to use: Makes the system efficient while preventing major 'postcode lotteries' where some patients travel a very long way.
Main Trade-off: Hard cut-off point could see some good solutions that nearly meet the cutoff being discarded.
Status: Supported

ID: p_center
Name: P-Center (The Fair-Maximum Model)
Goal: Minimize the maximum travel distance or time for the furthest patient.
When to use: Best for ensuring universal access in rural regions; 'No one left behind'.
Main Trade-off: Can lead to higher average travel distances or times for the majority population.
Status: Supported

ID: mclp
Name: Maximal Coverage Location Problem (MCLP)
Goal: Maximize the number of people within a specific time/distance 'threshold' (e.g., 15 minutes).
When to use: Best for emergency services (Ambulance/ER) where getting there within a 'Golden Hour' is more important than the average trip time.
Main Trade-off: Does not care how far away people are once they are outside the threshold.
Status: Supported

ID: lscp
Name: Location Set Covering Location Problem (LSCP)
Goal: Find the minimum number of facilities needed to cover *everyone* within a certain distance.
When to use: Best for universal mandates (e.g., ensuring every citizen is within 20 miles of a pharmacy).
Main Trade-off: Can be very expensive as it forces clinics into sparsely populated areas to reach the final 1%.
Status: Planned

ID: lscp-b
Name: LSCP-B (Backup Coverage Model)
Goal: Minimize the number of facilities needed to ensure everyone is covered by AT LEAST TWO locations.
When to use: Critical for high-reliability services like Maternity units or Stroke centers where 'System Busy' is a life-threatening risk.
Main Trade-off: Requires significantly more resources (budget/staff) than standard coverage to achieve the same geographic footprint.
Status: Planned

To run a model, use: prob.solve_pmedian(p=3) or similar.

Initialising required data

The show_ methods help us to see what format lokigi expects our data to be in.

problem.show_demand_format()

--- Expected Demand DataFrame Format ---
Note: Each row represents a unique demand location (e.g., LSOA).
site_id_col     | demand_col
------------------------------
LSOA 1          | 25
LSOA 2          | 15
...             | ...
----------------------------------------

problem.show_travel_format()

--- Expected Travel/Cost DataFrame Format ---
Note: Rows are sources, columns are destinations.
source_id       | dest_1          | dest_2
--------------------------------------------------
source_1        | 22.6            | 16.3
source_2        | 15.1            | 17.1
...             | ...             | ...
--------------------------------------------

For example, if using LSOAs, your dataframe might look like this:
source_id       | E01000259       | E01000314
--------------------------------------------------
Brighton and Hove 027E | 22.6            | 16.3
Brighton and Hove 005C | 15.1            | 17.1
...             | ...             | ...
--------------------------------------------

Or if you've defined your site names, it might look like this:
source_id       | Site 1          | Site 1
--------------------------------------------------
Brighton and Hove 027E | 22.6            | 16.3
Brighton and Hove 005C | 15.1            | 17.1
...             | ...             | ...
--------------------------------------------

Add the required data

We can now use the various add_ methods to add in the required datasets.

Historical Demand

problem.add_demand("../../../sample_data/brighton_demand.csv", demand_col="demand", location_id_col="LSOA")

problem.show_demand()

	LSOA	demand
0	Brighton and Hove 027E	3627
1	Brighton and Hove 027F	2323
2	Brighton and Hove 027A	2596
3	Brighton and Hove 029E	3132
4	Brighton and Hove 029D	2883
...	...	...
160	Brighton and Hove 012A	2497
161	Brighton and Hove 005C	2570
162	Brighton and Hove 012B	2051
163	Brighton and Hove 005A	1164
164	Brighton and Hove 005B	1097

165 rows × 2 columns

Candidate Sites

problem.add_sites("../../../sample_data/brighton_sites_named.geojson", candidate_id_col="site")

problem.show_sites()

	canonical_site_index	site	geometry
0	0	Dahlia (Site 1)	POINT (527142.275 106616.053)
1	1	Begonia (Site 2)	POINT (531493.995 106639.488)
2	2	Tulip (Site 3)	POINT (533356.778 105476.782)
3	3	Daisy (Site 4)	POINT (528513.424 105052.43)
4	4	Daffodil (Site 5)	POINT (532421.163 109069.196)
5	5	Snowdrop (Site 6)	POINT (528716.452 108042.794)

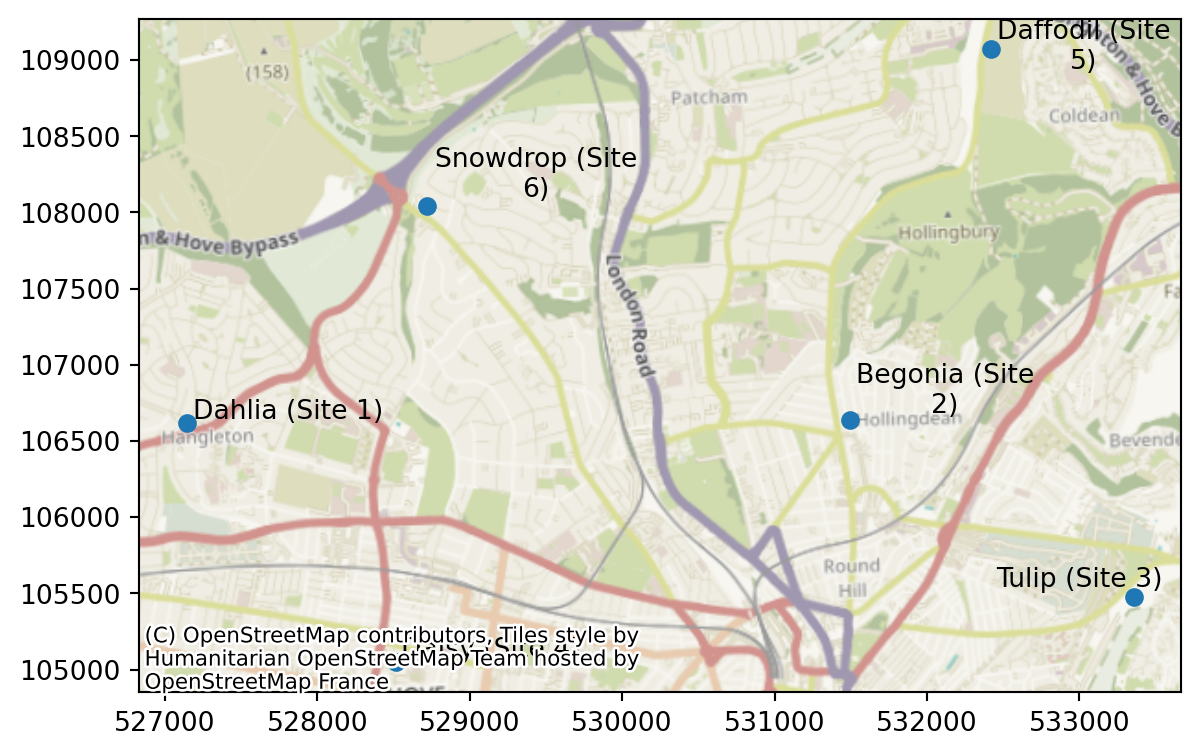

We can also plot the sites we’ve just put in.

problem.plot_sites()

problem.plot_sites(interactive=True)

Make this Notebook Trusted to load map: File -> Trust Notebook

Travel Data

Our travel matrix is in seconds. Let’s update this to minutes when we load it in.

problem.add_travel_matrix(
    travel_matrix_df="../../../sample_data/brighton_travel_matrix_driving_named.csv",
    source_col="LSOA",
    from_unit="seconds",
    to_unit="minutes"
    )

problem.travel_matrix

	LSOA	Dahlia (Site 1)	Begonia (Site 2)	Tulip (Site 3)	Daisy (Site 4)	Daffodil (Site 5)	Snowdrop (Site 6)
0	Brighton and Hove 027E	12.898833	8.794833	7.404833	8.197500	10.125667	9.248500
1	Brighton and Hove 027F	12.623167	8.318500	8.626167	9.351167	9.649500	8.972833
2	Brighton and Hove 027A	12.720667	10.023000	8.633000	6.840000	11.353833	9.289167
3	Brighton and Hove 029E	12.393667	10.862000	11.006000	6.328667	12.193000	9.293000
4	Brighton and Hove 029D	11.097500	11.077500	10.970000	5.216667	12.408333	9.508500
...	...	...	...	...	...	...	...
160	Brighton and Hove 012A	7.442333	14.745000	18.468500	8.652667	10.433667	7.463000
161	Brighton and Hove 005C	7.830000	13.080500	16.804000	9.490000	8.769167	5.798500
162	Brighton and Hove 012B	7.742167	15.153000	18.876667	8.952500	10.841833	7.871000
163	Brighton and Hove 005A	9.458167	14.708667	18.432167	11.068500	10.397333	7.426667
164	Brighton and Hove 005B	8.258333	13.508833	17.232333	9.918333	9.197500	6.226833

165 rows × 7 columns

Region Geometry

We’ll also want to add in a region geometry layer (a geodataframe containing the boundaries for the areas defined in our demand data) if we want to be able to plot some of our outputs.

problem.add_region_geometry_layer("https://github.com/hsma-programme/h6_3d_facility_location_problems/raw/refs/heads/main/h6_3d_facility_location_problems/example_code/LSOA_2011_Boundaries_Super_Generalised_Clipped_BSC_EW_V4.geojson", common_col="LSOA11NM")

# problem.add_region_geometry_layer("../../../sample_data/LSOA_2011_Boundaries_Super_Generalised_Clipped_BSC_EW_V4.geojson", common_col="LSOA11NM")

problem.show_region_geometry_layer()

	FID	LSOA11CD	LSOA11NM	LSOA11NMW	BNG_E	BNG_N	LONG	LAT	GlobalID	geometry
0	1	E01000001	City of London 001A	City of London 001A	532123	181632	-0.097140	51.51816	a758442e-7679-45d0-95a8-ed4c968ecdaa	POLYGON ((532282.629 181906.496, 532248.25 181...
1	2	E01000002	City of London 001B	City of London 001B	532480	181715	-0.091970	51.51882	861dbb53-dfaf-4f57-be96-4527e2ec511f	POLYGON ((532746.814 181786.892, 532248.25 181...
2	3	E01000003	City of London 001C	City of London 001C	532239	182033	-0.095320	51.52174	9f765b55-2061-484a-862b-fa0325991616	POLYGON ((532293.068 182068.422, 532419.592 18...
3	4	E01000005	City of London 001E	City of London 001E	533581	181283	-0.076270	51.51468	a55c4c31-ef1c-42fc-bfa9-07c8f2025928	POLYGON ((533604.245 181418.129, 533743.689 18...
4	5	E01000006	Barking and Dagenham 016A	Barking and Dagenham 016A	544994	184274	0.089317	51.53875	9cdabaa8-d9bd-4a94-bb3b-98a933ceedad	POLYGON ((545271.918 184183.948, 545296.314 18...
...	...	...	...	...	...	...	...	...	...	...
34748	34749	W01001954	Cardiff 006F	Caerdydd 006F	312959	180574	-3.255820	51.51735	5fc2d16e-8663-462f-936d-7535d0de1732	POLYGON ((313011.929 181083.89, 313533.809 180...
34749	34750	W01001955	Swansea 025F	Abertawe 025F	265633	193182	-3.942370	51.62137	0bcc9472-48d1-460c-a40e-c4a745269d84	POLYGON ((266079.095 193572.406, 266140.774 19...
34750	34751	W01001956	Swansea 023E	Abertawe 023E	260586	192621	-4.015000	51.61510	557e08ba-6aee-491d-8ba1-79eca916ce6b	POLYGON ((260107.578 194891.58, 260436.897 194...
34751	34752	W01001957	Swansea 025G	Abertawe 025G	265337	192555	-3.946400	51.61567	43f945c4-e97d-4b1f-9e4d-46d154a6662e	POLYGON ((264991.859 192395.89, 264913.891 192...
34752	34753	W01001958	Swansea 025H	Abertawe 025H	266265	192630	-3.933030	51.61656	84055fe9-868f-4150-9bea-082777cf132d	POLYGON ((266566.301 192259, 266577.9 191916.2...

34753 rows × 10 columns

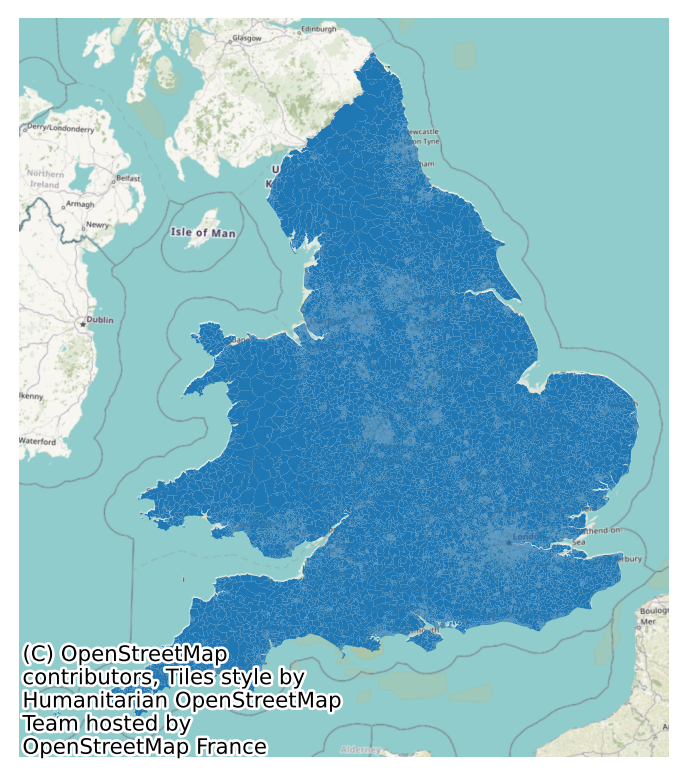

problem.plot_region_geometry_layer()

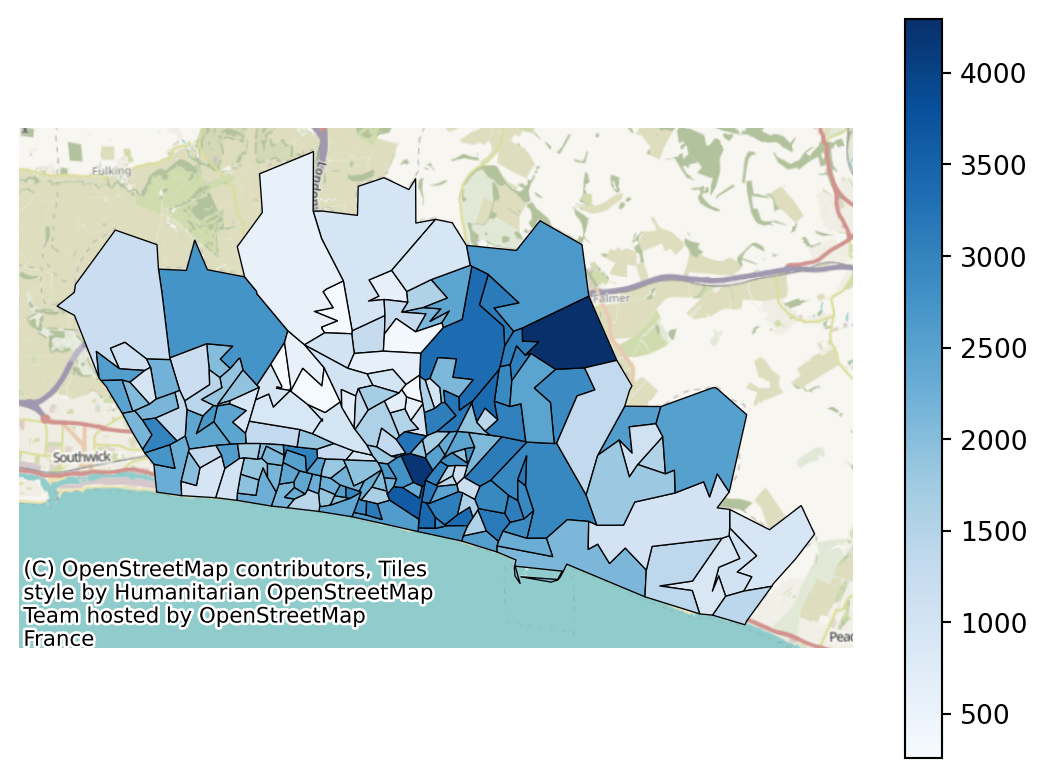

problem.plot_region_geometry_layer(plot_demand=True)

problem.plot_region_geometry_layer(interactive=True, height=600, width=600)

Make this Notebook Trusted to load map: File -> Trust Notebook

problem.plot_region_geometry_layer(interactive=True, plot_demand=True, height=600, width=600)

Make this Notebook Trusted to load map: File -> Trust Notebook

Evaluating a single solution

Generally we’re going to want to evaluate lots of solutions at once to find the optimum one.

However, we can also choose to evaluate a single solution.

combo_1 = problem.evaluate_single_solution_single_objective(site_names=["Dahlia (Site 1)", "Begonia (Site 2)"])
combo_1

<lokigi.site_solutions.EvaluatedCombination at 0x7f7dac2656d0>

combo_1.return_solution_metrics()

{'site_names': ['Dahlia (Site 1)', 'Begonia (Site 2)'],
 'site_indices': [0, 1],
 'coverage_threshold': None,
 'weighted_average': np.float64(8.450685200470566),
 'unweighted_average': np.float64(8.152459595959595),
 '90th_percentile': np.float64(11.978799999999998),
 'max': np.float64(23.921),
 'proportion_within_coverage_threshold': np.float64(0.0),
 'problem_df':                        LSOA  Dahlia (Site 1)  Begonia (Site 2)   min_cost  \
 0    Brighton and Hove 027E        12.898833          8.794833   8.794833
 1    Brighton and Hove 027F        12.623167          8.318500   8.318500
 2    Brighton and Hove 027A        12.720667         10.023000  10.023000
 3    Brighton and Hove 029E        12.393667         10.862000  10.862000
 4    Brighton and Hove 029D        11.097500         11.077500  11.077500
 ..                      ...              ...               ...        ...
 160  Brighton and Hove 012A         7.442333         14.745000   7.442333
 161  Brighton and Hove 005C         7.830000         13.080500   7.830000
 162  Brighton and Hove 012B         7.742167         15.153000   7.742167
 163  Brighton and Hove 005A         9.458167         14.708667   9.458167
 164  Brighton and Hove 005B         8.258333         13.508833   8.258333

         selected_site  within_threshold  demand
 0    Begonia (Site 2)               NaN    3627
 1    Begonia (Site 2)               NaN    2323
 2    Begonia (Site 2)               NaN    2596
 3    Begonia (Site 2)               NaN    3132
 4    Begonia (Site 2)               NaN    2883
 ..                ...               ...     ...
 160   Dahlia (Site 1)               NaN    2497
 161   Dahlia (Site 1)               NaN    2570
 162   Dahlia (Site 1)               NaN    2051
 163   Dahlia (Site 1)               NaN    1164
 164   Dahlia (Site 1)               NaN    1097

 [165 rows x 7 columns]}

Instead of site names, we could pass site indices. Remember - Python is a 0 indexed language (i.e. starts counting from 0) so this might not behave exactly as you’re expecting if you’re not familiar with thinking in this way.

combo_2 = problem.evaluate_single_solution_single_objective(site_indices=[1,2])
combo_2.evaluated_combination_df

	LSOA	Begonia (Site 2)	Tulip (Site 3)	min_cost	selected_site	within_threshold	demand
0	Brighton and Hove 027E	8.794833	7.404833	7.404833	Tulip (Site 3)	NaN	3627
1	Brighton and Hove 027F	8.318500	8.626167	8.318500	Begonia (Site 2)	NaN	2323
2	Brighton and Hove 027A	10.023000	8.633000	8.633000	Tulip (Site 3)	NaN	2596
3	Brighton and Hove 029E	10.862000	11.006000	10.862000	Begonia (Site 2)	NaN	3132
4	Brighton and Hove 029D	11.077500	10.970000	10.970000	Tulip (Site 3)	NaN	2883
...	...	...	...	...	...	...	...
160	Brighton and Hove 012A	14.745000	18.468500	14.745000	Begonia (Site 2)	NaN	2497
161	Brighton and Hove 005C	13.080500	16.804000	13.080500	Begonia (Site 2)	NaN	2570
162	Brighton and Hove 012B	15.153000	18.876667	15.153000	Begonia (Site 2)	NaN	2051
163	Brighton and Hove 005A	14.708667	18.432167	14.708667	Begonia (Site 2)	NaN	1164
164	Brighton and Hove 005B	13.508833	17.232333	13.508833	Begonia (Site 2)	NaN	1097

165 rows × 7 columns

Evaluating multiple solutions

Let’s now work out the best possible combination of 3 sites of the 6 candidate sites.

solutions = problem.solve(p=3, objectives="p_median")
solutions

<lokigi.site_solutions.SiteSolutionSet at 0x7f7da1be5730>

solutions.show_solutions()

	solution_rank	site_names	site_indices	coverage_threshold	weighted_average	unweighted_average	90th_percentile	max	proportion_within_coverage_threshold	problem_df
0	1	[Tulip (Site 3), Daisy (Site 4), Daffodil (Sit...	[2, 3, 4]	None	5.37	5.45	8.50	16.69	0.0	LSOA  Tulip (Site 3)  D...
1	2	[Tulip (Site 3), Daisy (Site 4), Snowdrop (Sit...	[2, 3, 5]	None	5.38	5.36	8.06	16.69	0.0	LSOA  Tulip (Site 3)  D...
2	3	[Dahlia (Site 1), Tulip (Site 3), Daisy (Site 4)]	[0, 2, 3]	None	5.53	5.67	9.36	16.69	0.0	LSOA  Dahlia (Site 1)  ...
3	4	[Begonia (Site 2), Tulip (Site 3), Daisy (Site...	[1, 2, 3]	None	5.54	5.59	9.00	16.69	0.0	LSOA  Begonia (Site 2) ...
4	5	[Dahlia (Site 1), Tulip (Site 3), Snowdrop (Si...	[0, 2, 5]	None	6.32	6.21	9.33	16.69	0.0	LSOA  Dahlia (Site 1)  ...
5	6	[Dahlia (Site 1), Tulip (Site 3), Daffodil (Si...	[0, 2, 4]	None	6.35	6.32	9.70	16.69	0.0	LSOA  Dahlia (Site 1)  ...
6	7	[Tulip (Site 3), Daffodil (Site 5), Snowdrop (...	[2, 4, 5]	None	6.42	6.29	9.26	16.69	0.0	LSOA  Tulip (Site 3)  D...
7	8	[Dahlia (Site 1), Begonia (Site 2), Tulip (Sit...	[0, 1, 2]	None	6.47	6.39	9.77	16.69	0.0	LSOA  Dahlia (Site 1)  ...
8	9	[Begonia (Site 2), Tulip (Site 3), Snowdrop (S...	[1, 2, 5]	None	6.51	6.31	9.45	16.69	0.0	LSOA  Begonia (Site 2) ...
9	10	[Begonia (Site 2), Daisy (Site 4), Daffodil (S...	[1, 3, 4]	None	6.92	6.76	11.32	21.71	0.0	LSOA  Begonia (Site 2) ...
10	11	[Begonia (Site 2), Daisy (Site 4), Snowdrop (S...	[1, 3, 5]	None	6.98	6.64	11.58	22.86	0.0	LSOA  Begonia (Site 2) ...
11	12	[Dahlia (Site 1), Daisy (Site 4), Daffodil (Si...	[0, 3, 4]	None	7.04	6.81	12.26	21.71	0.0	LSOA  Dahlia (Site 1)  ...
12	13	[Daisy (Site 4), Daffodil (Site 5), Snowdrop (...	[3, 4, 5]	None	7.06	6.73	12.26	21.71	0.0	LSOA  Daisy (Site 4)  D...
13	14	[Dahlia (Site 1), Begonia (Site 2), Daisy (Sit...	[0, 1, 3]	None	7.13	6.92	11.93	23.92	0.0	LSOA  Dahlia (Site 1)  ...
14	15	[Begonia (Site 2), Tulip (Site 3), Daffodil (S...	[1, 2, 4]	None	7.48	7.46	11.57	16.69	0.0	LSOA  Begonia (Site 2) ...
15	16	[Dahlia (Site 1), Begonia (Site 2), Daffodil (...	[0, 1, 4]	None	7.95	7.66	11.67	21.71	0.0	LSOA  Dahlia (Site 1)  ...
16	17	[Dahlia (Site 1), Begonia (Site 2), Snowdrop (...	[0, 1, 5]	None	7.99	7.54	11.90	22.86	0.0	LSOA  Dahlia (Site 1)  ...
17	18	[Begonia (Site 2), Daffodil (Site 5), Snowdrop...	[1, 4, 5]	None	8.03	7.65	11.67	21.71	0.0	LSOA  Begonia (Site 2) ...
18	19	[Dahlia (Site 1), Daisy (Site 4), Snowdrop (Si...	[0, 3, 5]	None	8.08	7.69	13.72	22.86	0.0	LSOA  Dahlia (Site 1)  ...
19	20	[Dahlia (Site 1), Daffodil (Site 5), Snowdrop ...	[0, 4, 5]	None	8.16	7.70	12.65	21.71	0.0	LSOA  Dahlia (Site 1)  ...

len(solutions.show_solutions())

20

We could limit this to just the best solutions.

solutions.show_solutions(n_best=5)

	solution_rank	site_names	site_indices	coverage_threshold	weighted_average	unweighted_average	90th_percentile	max	proportion_within_coverage_threshold	problem_df
0	1	[Tulip (Site 3), Daisy (Site 4), Daffodil (Sit...	[2, 3, 4]	None	5.37	5.45	8.50	16.69	0.0	LSOA  Tulip (Site 3)  D...
1	2	[Tulip (Site 3), Daisy (Site 4), Snowdrop (Sit...	[2, 3, 5]	None	5.38	5.36	8.06	16.69	0.0	LSOA  Tulip (Site 3)  D...
2	3	[Dahlia (Site 1), Tulip (Site 3), Daisy (Site 4)]	[0, 2, 3]	None	5.53	5.67	9.36	16.69	0.0	LSOA  Dahlia (Site 1)  ...
3	4	[Begonia (Site 2), Tulip (Site 3), Daisy (Site...	[1, 2, 3]	None	5.54	5.59	9.00	16.69	0.0	LSOA  Begonia (Site 2) ...
4	5	[Dahlia (Site 1), Tulip (Site 3), Snowdrop (Si...	[0, 2, 5]	None	6.32	6.21	9.33	16.69	0.0	LSOA  Dahlia (Site 1)  ...

Travel Time Distributions for best outputs

Let’s take a look at how the travel time varies across different regions where our demand is coming from.

solutions.plot_travel_time_distribution()

We can repeat this to see the variation across some of our best solutions.

solutions.plot_travel_time_distribution(5)

We can also pass compare_to_best=True to get the relative change in travel time distributions compared to the best solution.

The bar overlapped by the vertical black line is the regions with no change from the best solution.

solutions.plot_travel_time_distribution(5, compare_to_best=True)

Let’s see if the travel time differs when we rank on max travel time instead.

solutions.plot_travel_time_distribution(3, compare_to_best=True, rank_on="max")

Plotting solutions

There are a wide range of different maps we can output.

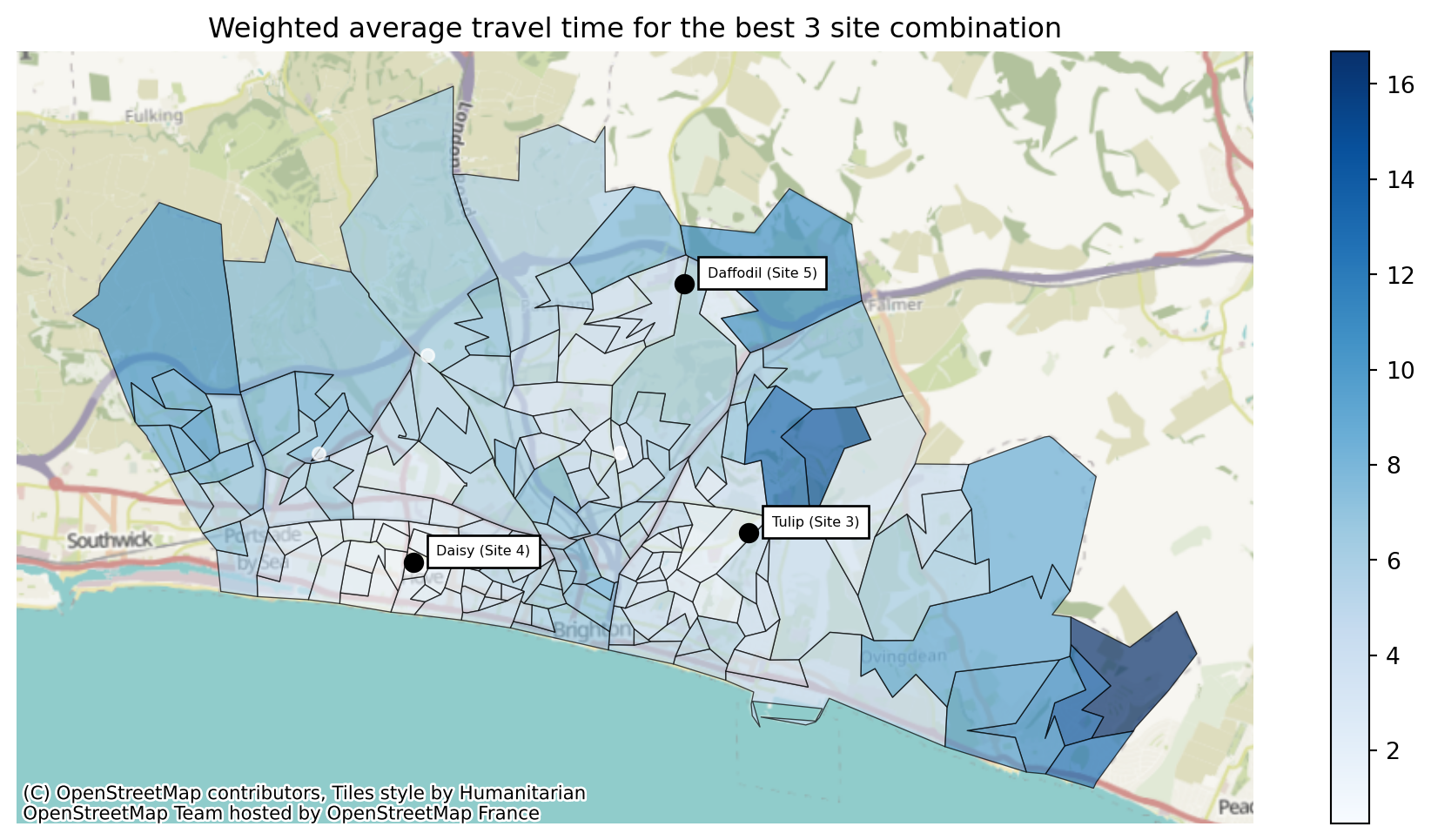

solutions.plot_best_combination(title="Weighted average travel time for the best 3 site combination");

We could instead plot which site is the nearest to each location.

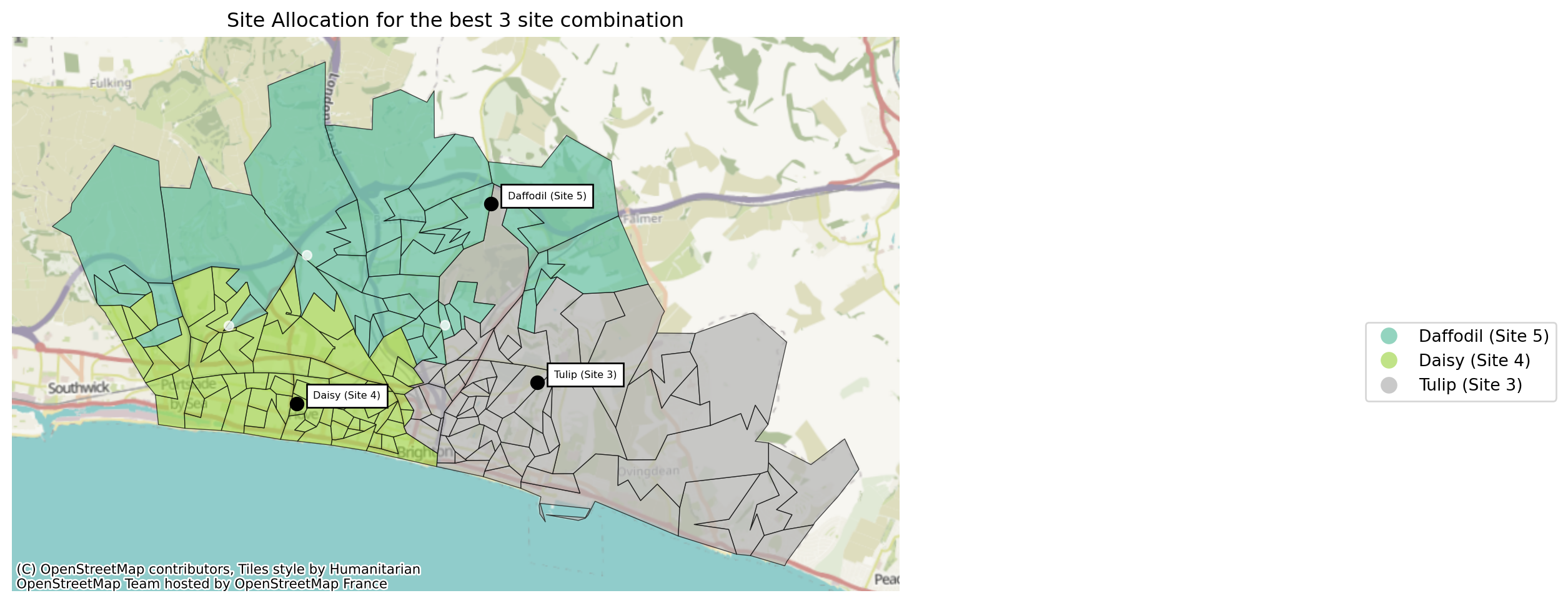

solutions.plot_best_combination(title="Site Allocation for the best 3 site combination", plot_site_allocation=True);

We can also choose to plot multiple possible combinations.

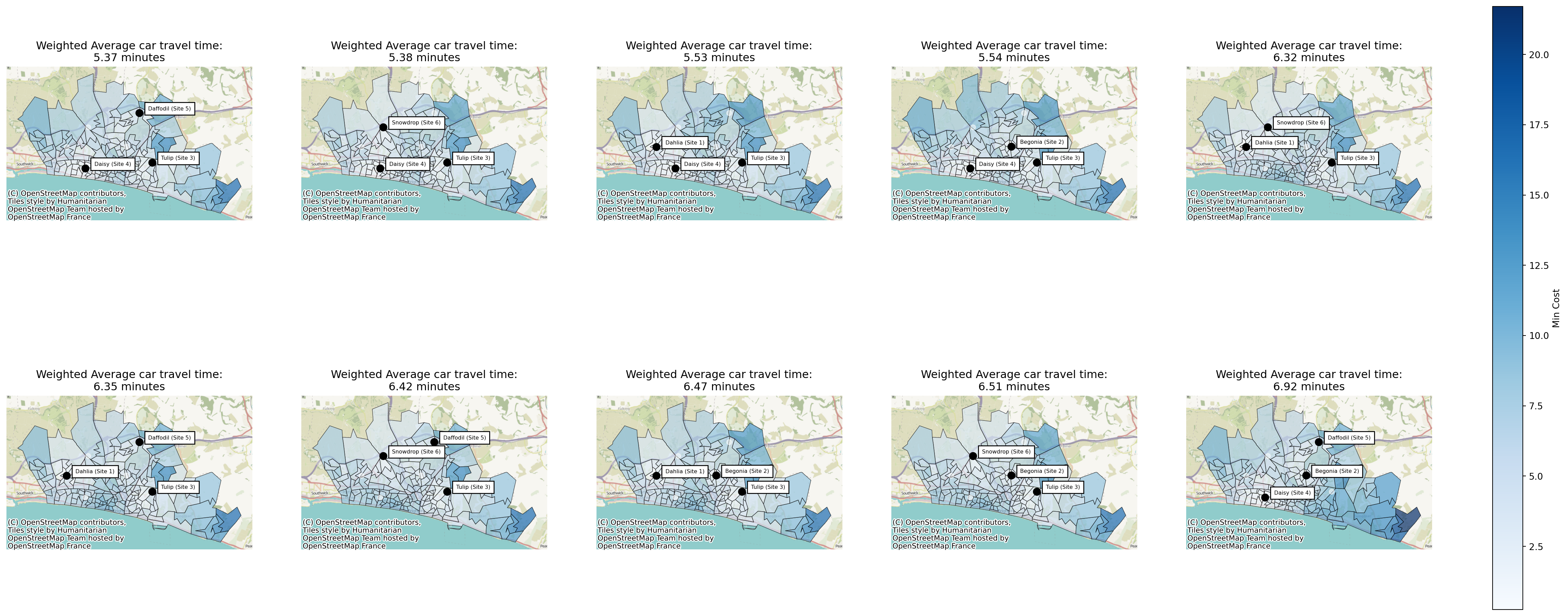

solutions.plot_n_best_combinations(subplot_title="Weighted Average car travel time:\n{solution['weighted_average'].values[0]:.2f} minutes");

And like with the single solution plot, we can also switch to looking at the breakdown by the selected sites.

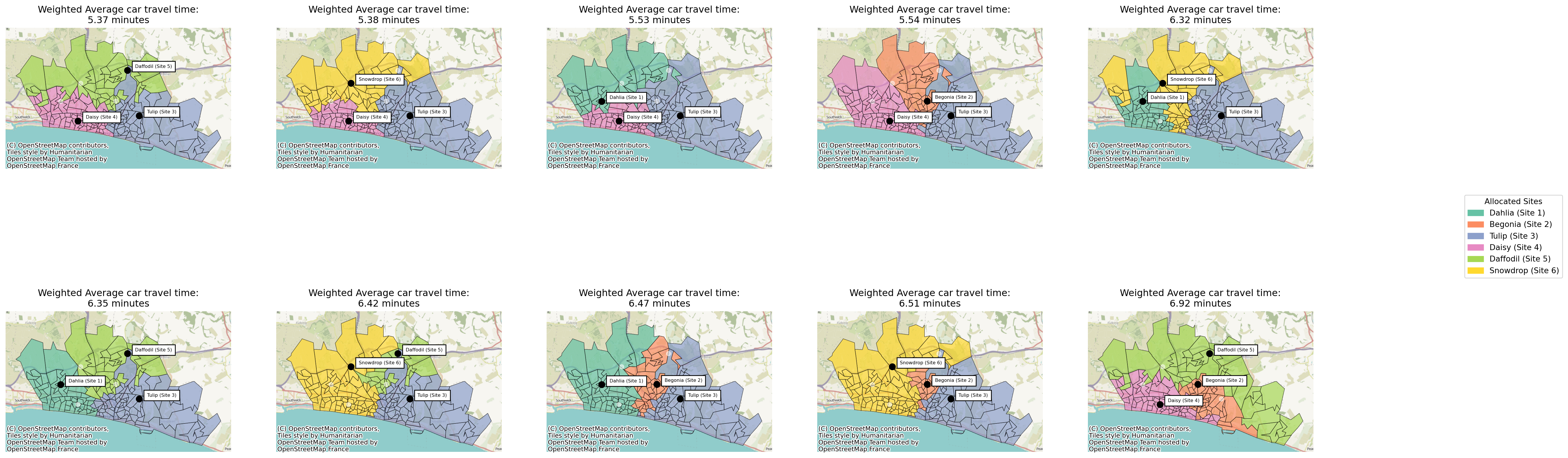

solutions.plot_n_best_combinations(plot_site_allocation=True, subplot_title="Weighted Average car travel time:\n{solution['weighted_average'].values[0]:.2f} minutes");

We can change what the solutions are ranked on - here we rate by the maximum travel time seen by any one LSOA, and display that instead.

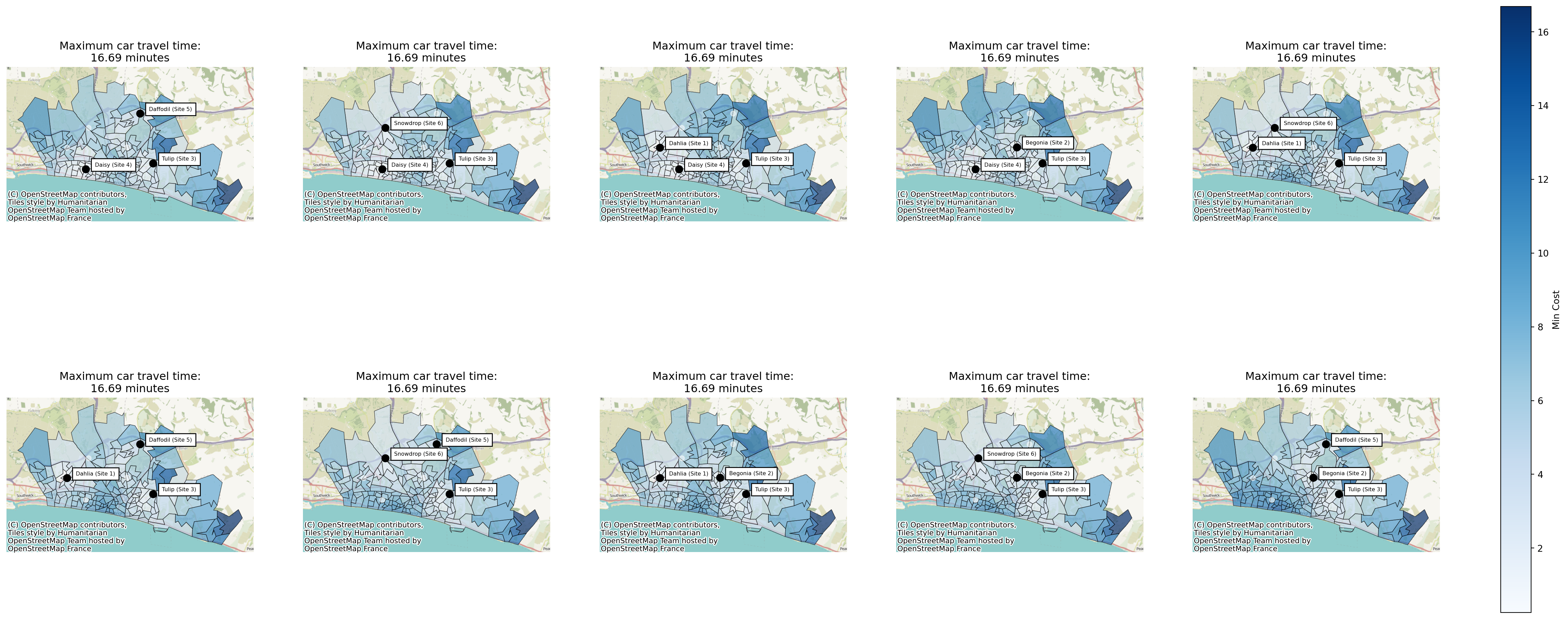

solutions.plot_n_best_combinations(rank_on="max", subplot_title="Maximum car travel time:\n{solution['max'].values[0]:.2f} minutes")

(<Figure size 2880x1152 with 11 Axes>,
 array([<Axes: title={'center': 'Maximum car travel time:\n16.69 minutes'}>,
        <Axes: title={'center': 'Maximum car travel time:\n16.69 minutes'}>,
        <Axes: title={'center': 'Maximum car travel time:\n16.69 minutes'}>,
        <Axes: title={'center': 'Maximum car travel time:\n16.69 minutes'}>,
        <Axes: title={'center': 'Maximum car travel time:\n16.69 minutes'}>,
        <Axes: title={'center': 'Maximum car travel time:\n16.69 minutes'}>,
        <Axes: title={'center': 'Maximum car travel time:\n16.69 minutes'}>,
        <Axes: title={'center': 'Maximum car travel time:\n16.69 minutes'}>,
        <Axes: title={'center': 'Maximum car travel time:\n16.69 minutes'}>,
        <Axes: title={'center': 'Maximum car travel time:\n16.69 minutes'}>],
       dtype=object))

Plotting solution comparisons

We can also just look at the outputs as a bar plot.

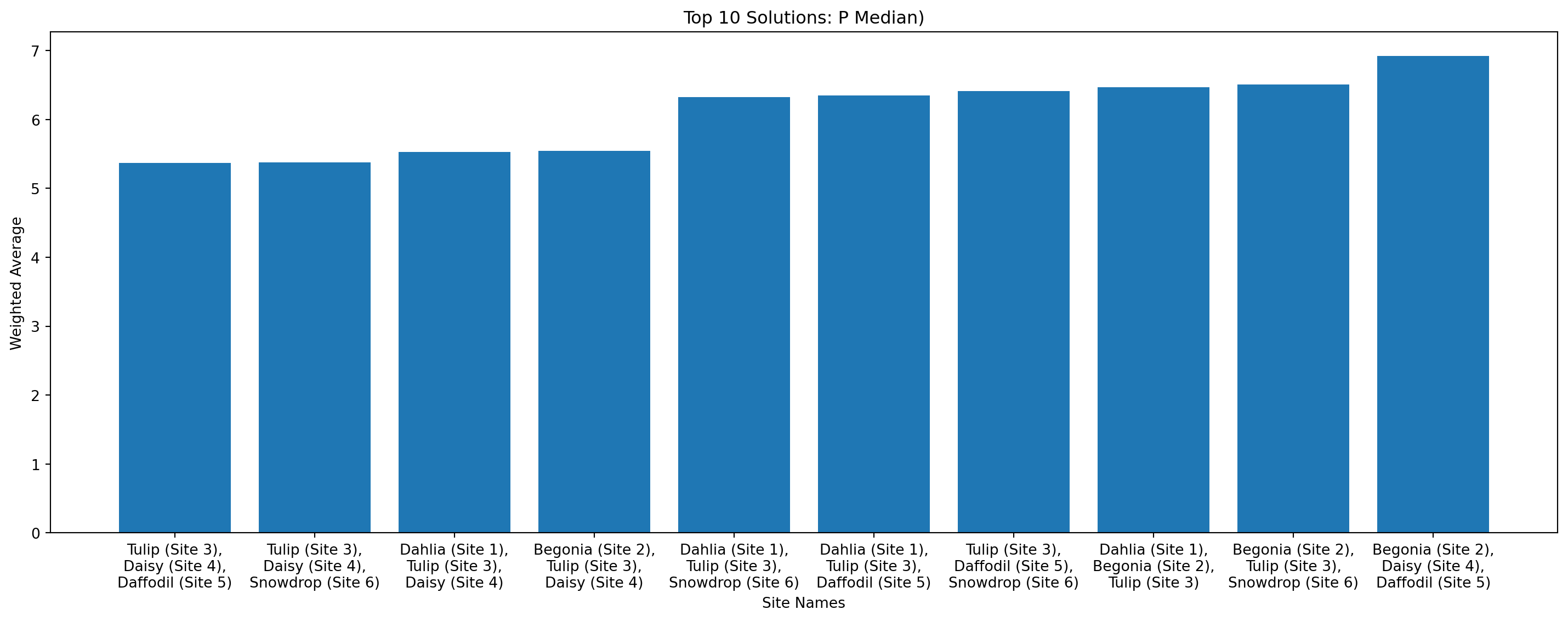

solutions.plot_n_best_combinations_bar(n_best=10, interactive=True)

solutions.plot_n_best_combinations_bar(n_best=10, interactive=False, static_width=15)

Let’s also look at how this varies when we compare the weighted average travel time to the max travel time for each solution.

We can now clearly ssee that the solution with the best (lowest) weighted average travel time is also the one with the lowest max travel distance, though several solutions have the same maximum travel distance, and a few have a very similar weighted average travel time.

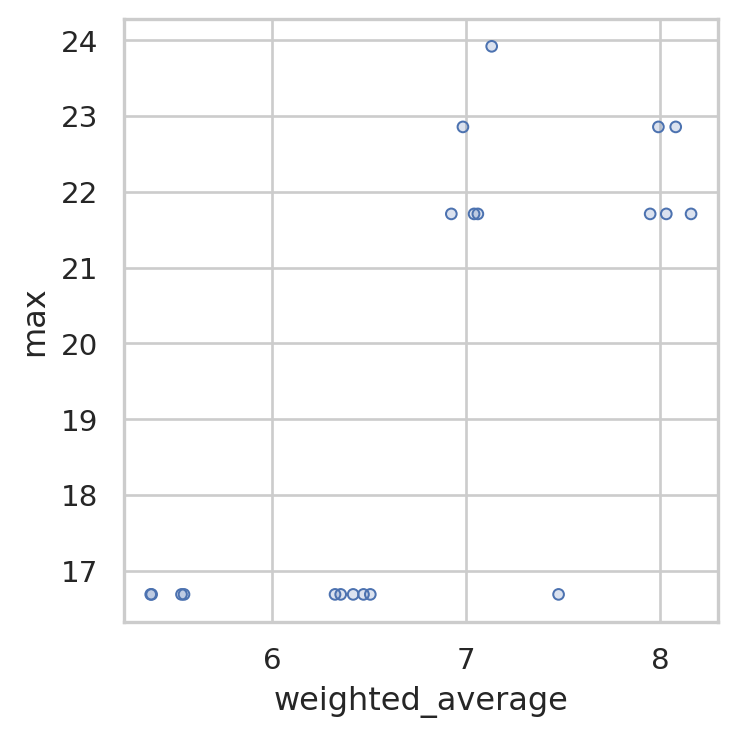

solutions.plot_simple_pareto_front()

We can also plot comparisons of all calculated metrics. We can see for unweighted_average and weighted_average, there is one solution with a better unweighted_average than the best solution for weighted_average, so we have a line plotted between those two solutions - the ‘pareto front’.

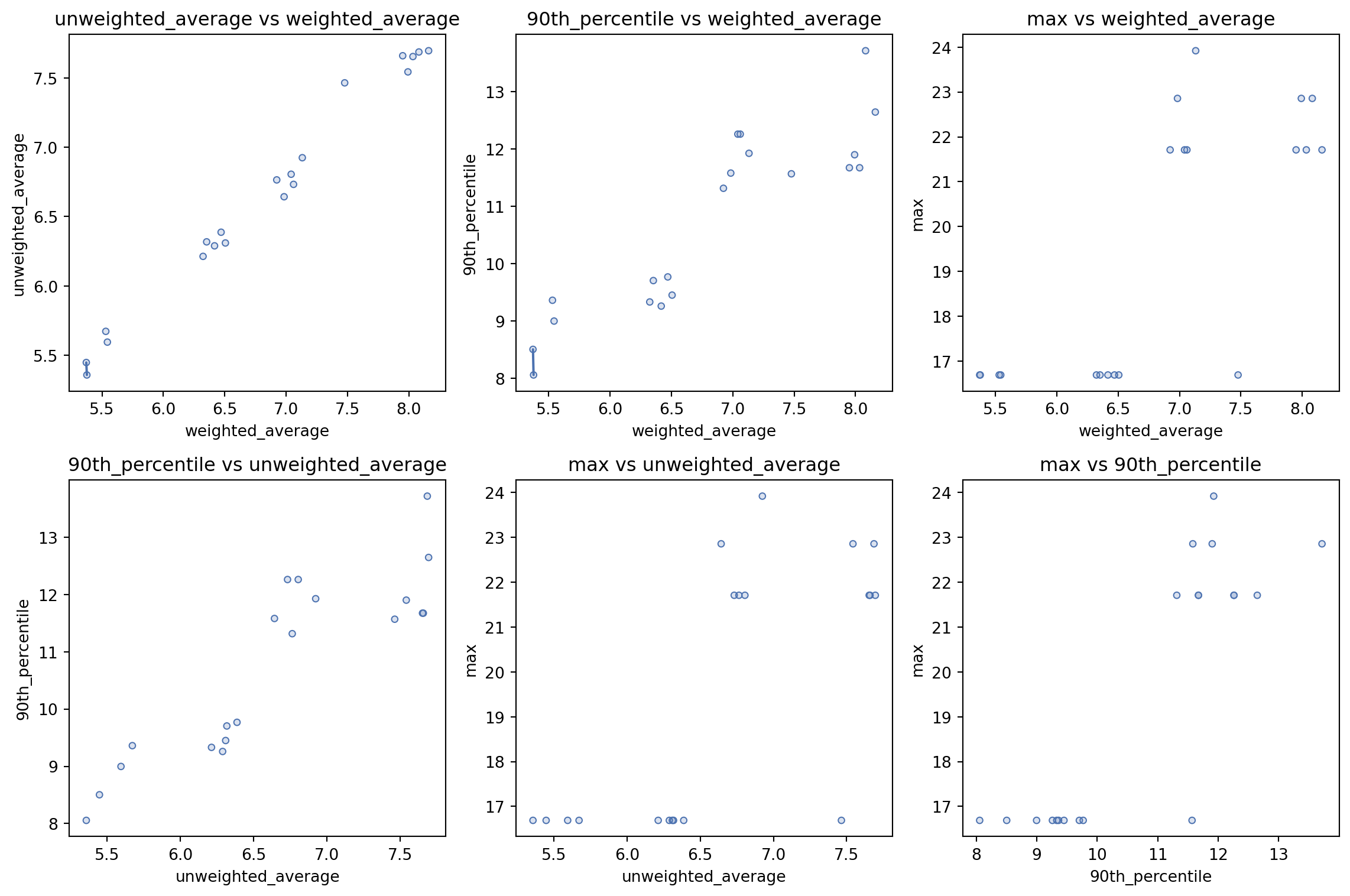

solutions.plot_all_metric_pareto_front()
